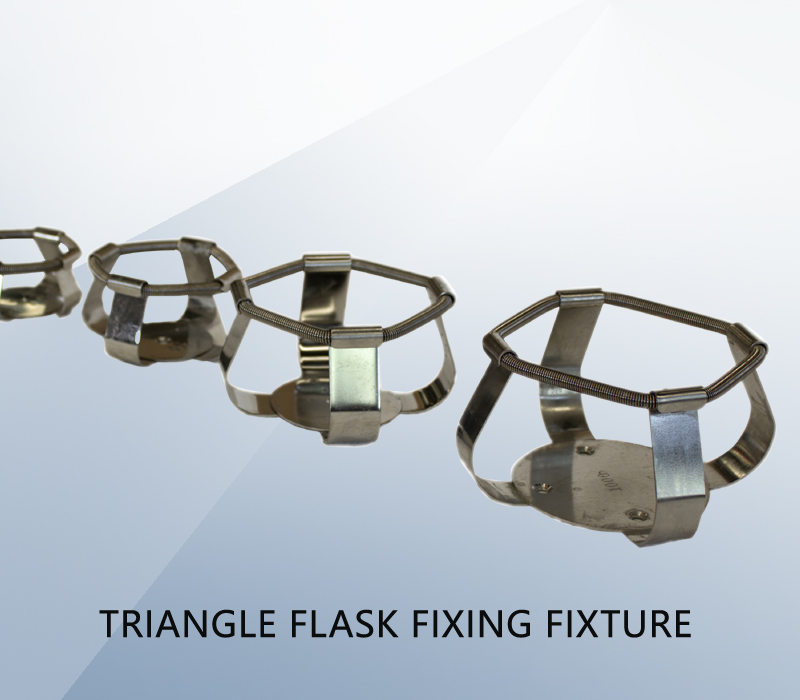

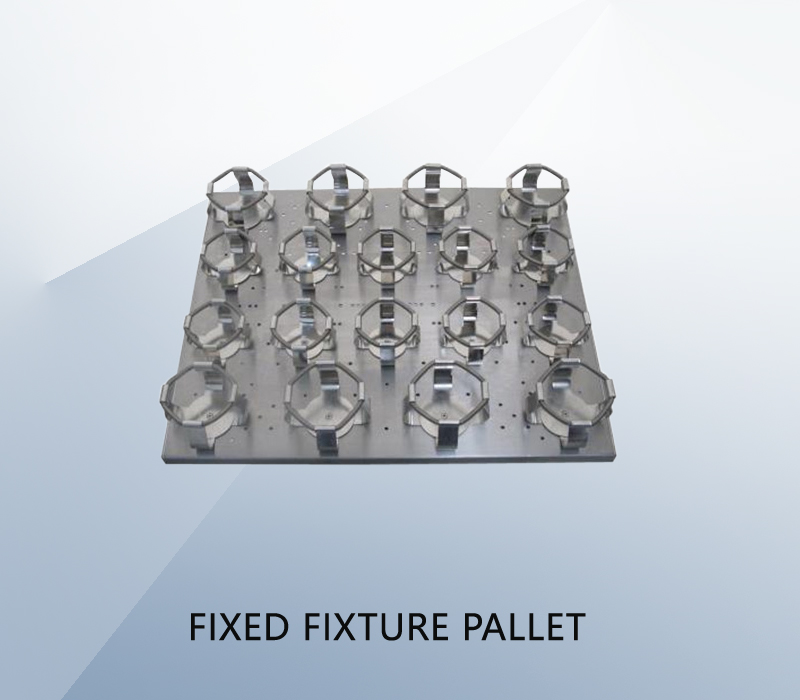

Configuration table of oscillation incubator series triangular flask (fixed fixture)
Product Name | Name | 100ml | 250ml | 500ml | 1000ml | 2000ml | 3000ml | 5000ml | notes | Factory default configuration | |||||||
Std config | max | Std config | max | Std config | max | Std config | max | Std config | max | Std config | max | Std config | max | ||||
Desktop oscillation incubator | ZQP100G | 23 | 16 | 9 | 5 | 4 | — | — | — | — | single layer | 500mlStd config9pieces | |||||
ZQP-100D | |||||||||||||||||

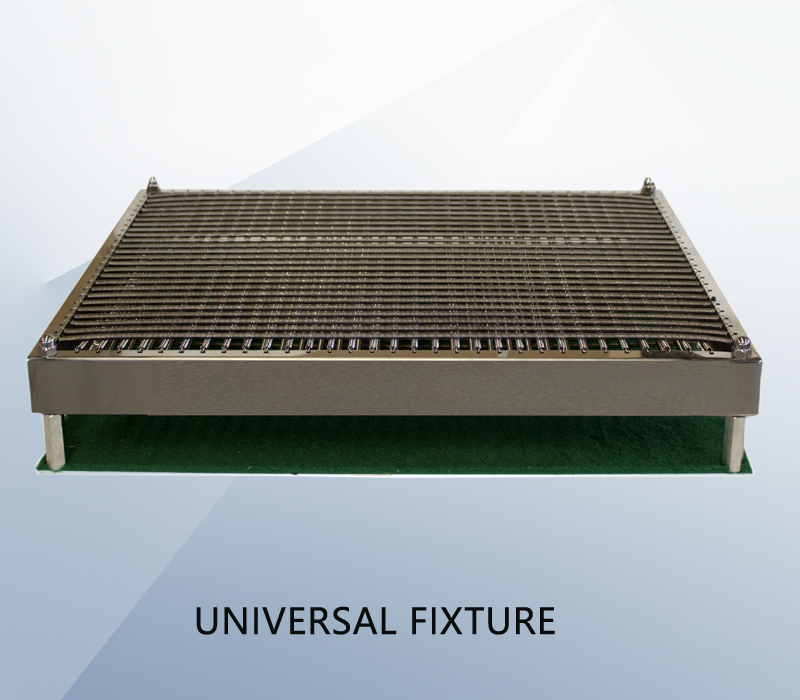

Horizontal oscillation incubator | ZHPW-70 | 25 | 42 | 20 | 30 | 12 | 20 | 6 | 9 | 4 | 6 | — | — | — | — | single layer | Standard universal fixture |
ZQPW-70 | |||||||||||||||||
ZHPW-90 | |||||||||||||||||
ZQPW-90 | |||||||||||||||||
ZQPW-90G | |||||||||||||||||
ZHPW-300 | 60 | 84 | 45 | 66 | 32 | 45 | 20 | 28 | 15 | 15 | 8 | 11 | 6 | 8 | single layer | 1000mlStd config20pieces | |
ZGPW-300 | |||||||||||||||||
ZGPW-300G | |||||||||||||||||
Vertical oscillation incubator | ZHPL-200 | 20 | 42 | 20 | 25 | 12 | 16 | 6 | 9 | 4 | 6 | — | — | — | — | double-layer | Upper universal fixture, lower 500ml standard with 12 pieces |
ZQPL-200 | |||||||||||||||||
ZQPL-200A | |||||||||||||||||
ZQPL-200R | |||||||||||||||||
ZQPL-200G | |||||||||||||||||
ZQPL-500 | 45 | 77 | 35 | 45 | 24 | 37 | 12 | 18 | 8 | 13 | — | — | — | — | double-layer | 12 standard 1000ml upper and lower layers | |
ZQPL-500A | |||||||||||||||||
Combination oscillation incubator | ZQPZ-115 | 42 | 53 | 20 | 30 | 20 | 20 | 12 | 12 | 6 | 8 | 5 | 5 | — | — | single layer | 500ml comes standard with 12 pieces |
ZHPZ-115 | |||||||||||||||||
ZQPZ-228 | 45 | 95 | 28 | 56 | 28 | 38 | 14 | 22 | 9 | 12 | — | — | — | — | single layer | 1000ml comes standard with 14 pieces | |
ZHPZ-228 | |||||||||||||||||
ZQPZ-228A | 60 | 96 | 45 | 65 | 28 | 45 | 18 | 24 | 15 | 15 | 8 | 11 | — | — | single layer | 1000ml comes standard with 14 pieces | |
ZQPZ-228G | |||||||||||||||||
ZQPZ-228R | |||||||||||||||||
| Water bath constant temperature oscillation box | SYWF-60 | — | 24 | — | 15 | — | 12 | — | 6 | — | — | — | — | — | — | single layer | 250mlStd config15pieces |
| Bottle shaker open type | YPJ-300 | — | — | — | 42 | — | 30 | — | 20 | — | 12 | — | — | — | — | single layer | 1000mlStd config20pieces |
| oscillator | YPJ-300S | ||||||||||||||||
