In pharmaceutical manufacturing, the drying of drug substances and intermediates is a critical step to ensure product quality. Forced air ovens, with their precise temperature control, uniform heating, and efficient moisture removal, are widely used in the pharmaceutical industry. Below is a detailed overview of their specific applications and advantages in pharmaceutical raw materials and intermediates.
1. Application Scenarios
(1) Drying of Active Pharmaceutical Ingredients (APIs)
Removal of moisture or solvents: After synthesis, APIs may contain residual water or organic solvents (e.g., ethanol, acetone), which must be removed to improve purity and stability.
Prevention of degradation: Heat-sensitive APIs (e.g., certain antibiotics, protein-based drugs) require low-temperature (40–80°C). Forced air ovens provide precise temperature control to avoid degradation of active components.
(2) Drying of Intermediates
Batch consistency: Intermediates in chemical synthesis must be dried before proceeding to the next step. Forced air ovens ensure uniform conditions, minimizing process variability.
Solvent recovery: Some organic solvents can be recycled. Optimizing temperature and airflow in forced air ovens reduces residual solvent levels.
(3) Drying of Crystalline Drugs
Crystal form control: The polymorphic form of drugs (e.g., ibuprofen, amoxicillin) affects solubility and efficacy. Uniform heating prevents localized overheating and undesired crystal transformation.
Prevention of agglomeration: Controlled airflow and temperature reduce powder caking, improving flowability for tablet compression or capsule filling.

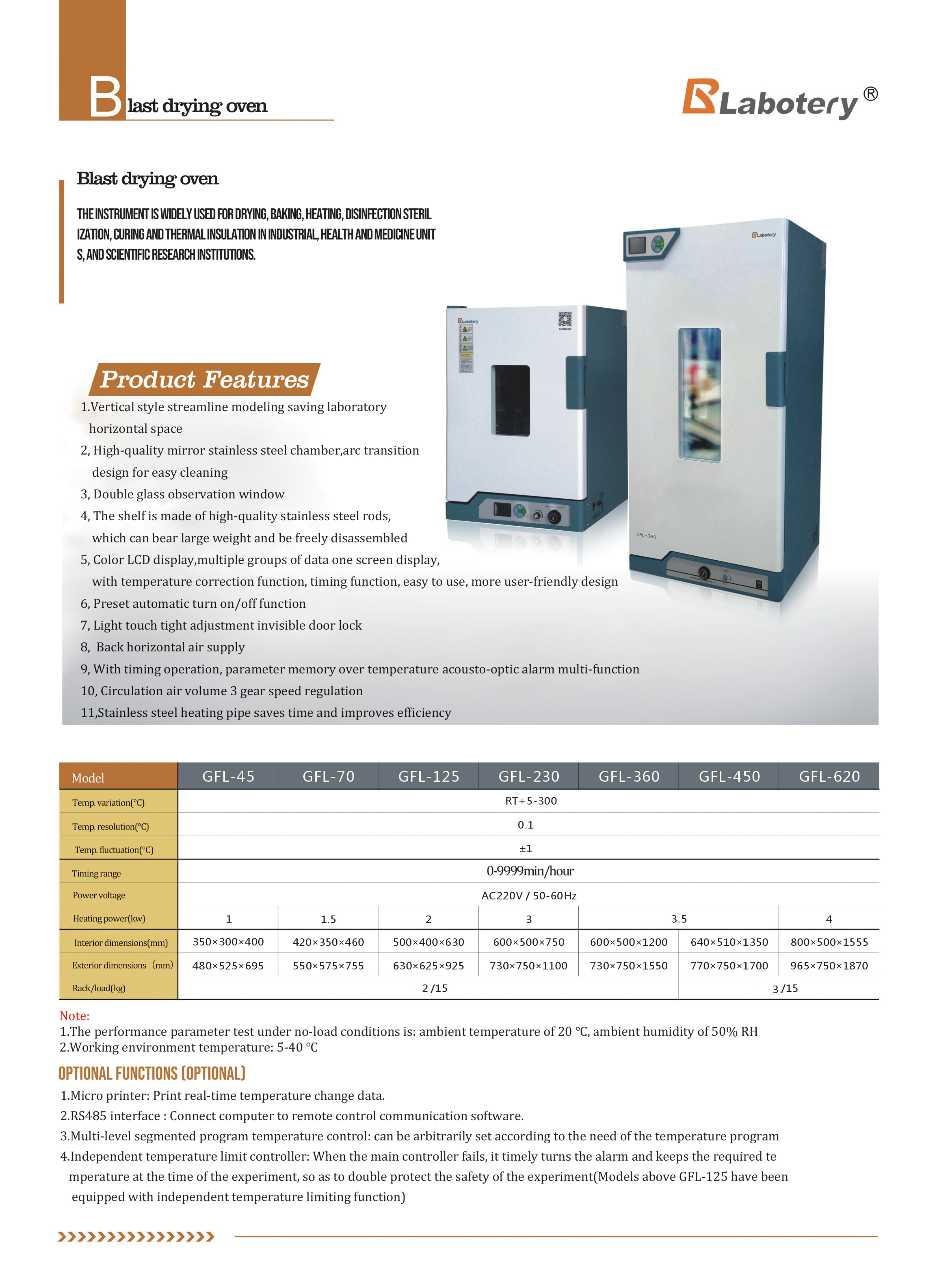

2. Key Advantages of Forced Air Drying Ovens
Advantage | Description |
|---|---|
Precise temperature control | PID temperature control (±1°C), compliant with pharmacopoeial standards (e.g., USP, ChP). |
Uniform forced convection heating | High-efficiency fan circulation ensures even heat distribution and consistent . |
Programmable drying profiles | Multi-stage heating/cooling programs for customized processes (e.g., stepwise solvent removal). |
GMP compliance | Stainless steel chamber, easy-to-clean design, and data logging for traceability. |
Safety features | Over-temperature protection, explosion-proof options (for flammable |
Easy to operate | The partition is made of high-quality stainless steel rods, which have a large load-bearing capacity and can be freely disassembled. |
Easy to observe | Double layered glass observation window, environmentally friendly insulation material. The studio has three levels of circulating wind speed adjustment. |
Adjustable wind speed | Horizontal air supply to the back. |
Reasonable air supply outlet | Stainless steel heating tubes save time and improve efficiency. |
Invisible door lock | Light touch elastic adjustment invisible door lock. |
liquid crystal display | Color LCD screen display, multiple sets of data displayed on one screen, with temperature correction function and timing function, easy to use, and more user-friendly design. |
